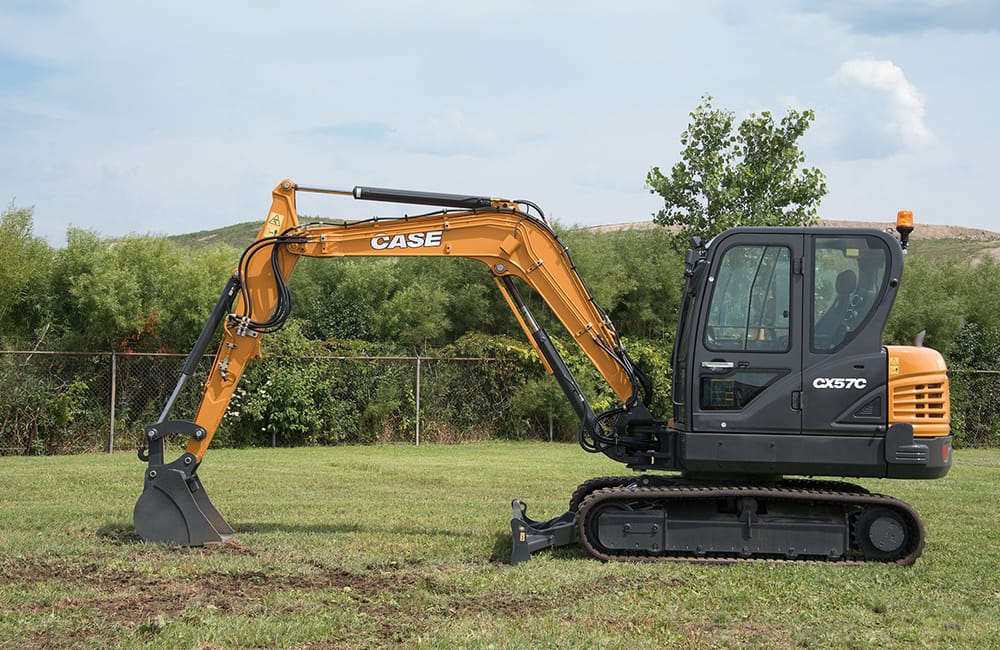

CX57C

OPERATING WEIGHT
12,270 lb | 5 565 kg

ENGINE POWER
66.9 hp | 49.9 kW

CASE CX57C is a “large” mini excavator with industry leading horsepower, capable of handling the demands of heavier excavation operations. Its design stands apart from the rest of the C Series line because it features a conventional tailswing design with a large counterweight, giving it power and performance comparable to a larger class – all while still taking up a relatively small footprint. Standard performance features and a standard deluxe cab with a 7” LCD touch screen monitor make the CX57C a powerful, versatile and intuitive mini excavator.

• V98C
• Engine access under rear hood
• Glow plug starting aid
• Dry type air cleaner with restriction indicator

ELECTRICAL

• 12-volt electrical starting system
• Heavy-duty battery
• Battery Master Switch
• Key Start
• Anti-Theft-Engine starting passwords
• Front and rear working lights
• 12 V power outlet
• Auto-idle deature with on/off switch
• Horn

HYDRAULICS

• Auxiliary hydraulics – independent single and bi-directional – and plumbing to arm
• Large hydraulic oil cooler
• Control pattern selector valve
• Cylinder rod protection covers – Boom

TRACK DRIVE

• Rubber tracks
• Automatic 2-speed travel
• Fully hydrostatic drive system
• Sealed and lubricated track rollers
• Track tension adjustment – grease type

OPERATOR ENVIRONMENT

• Enclosed cab w/heat and air conditioning
• Pilot operated hand controls and foot pedals
• Adjustable seat w/seat belt and seat heater
• Arm rests
• 12V socket
• 5.7 in color LCD display
• Cup holder
• Cell phone holder
• Bluetooth radio with USB input, 2 speakers and remote control
• Display includes
  • Hydraulic oil temp warning lamp
  • Air cleaner warning lamp
  • Engine stop warning lamp
  • Check engine warning lamp
  • Water in fuel warning lamp
  • Battery charging warning lamp
  • Emergency warning lamp
  • Engine coolant temp warning lamp
  • Engine oil pressure warning lamp
  • DPF regeneration inhibit warning lamp
  • DPF regeneration acknowledge warning lamp
  • DPF warning lamp
  • High Exhaust Temperature warning lamp
  • Low fuel level warning lamp
  • Engine coolant temperature gauge
  • Hydraulic oil temperature guage
  • Fuel gauge
  • Engine RPM
  • Hour meter

UPPER STRUCTURE

• Conventional radius tail swing
• Standard arm: 5 ft 3 in (1.6 m)
• Bucket linkage with lifting hook
• Thumb bracket

OTHER

• Swing boom – 80° left /50° right
• Hydraulic backfill blade
• Heavy counterweight: 220 lb (100 kg) heavier than standard weight
