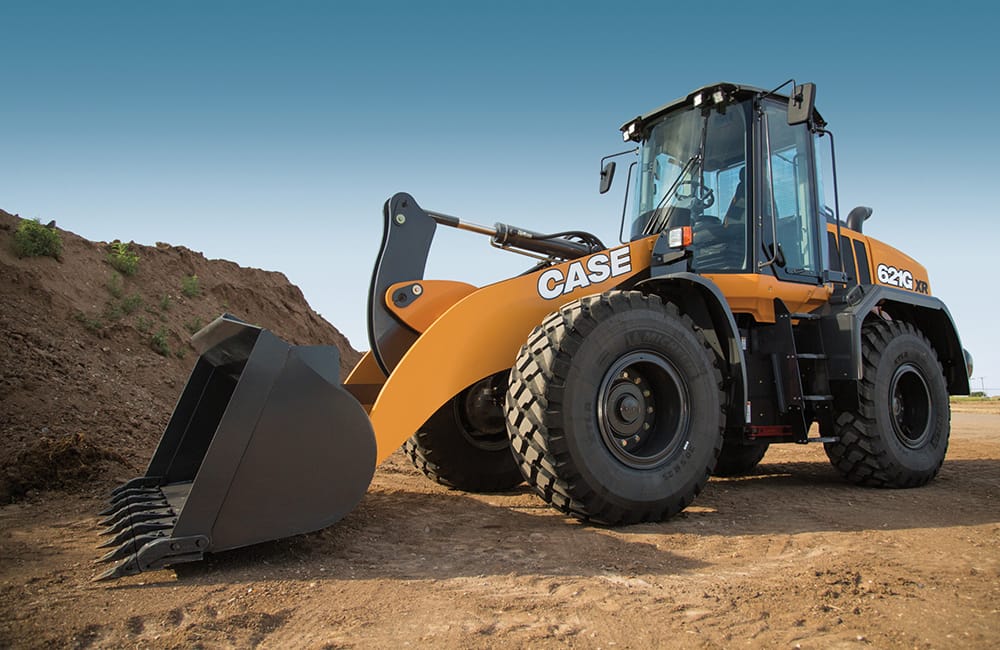

621G

OPERATOR ENVIRONMENT

• ROPS cab AC w/ heat
• Key start
• Articulated power steering w/ tilt column
• Fully adjustable, suspension seat
• Foot throttle
• Single lever loader control w/ fully adjustable wrist rest, 2 cup holders
• 2 interior rear view mirrors
• 2 in (51 mm) retractable seat belt
• Multiple storage trays
• Single brake pedal
• F/N/R shuttle switch
• External rearview mirrors
• Pressurized air filtering
• Anti-glare window strip
• Front and Rear Defroster
• Side window, partial/fully open
• 2 Dome lights
• Wipers, rear and intermittent front
• Windshield washers, front and rear
• Rubber floor mat
• Horn
• Dispays/Gauges: Digital: Transmission oil temperature, Engine coolant temperature, Fuel level, DEF level
• LCD screen: Hour meter, Time, FNR indicator, Trip computer, Differential lock, Engine speed, Automatic transmission indicator, DeClutch indicator, Fuel consumption, Engine diagnostics, Error reporting, Travel speed, Gear selection, Engine mode indicator, Transmission diagnostics, DEF – Diesel Exhaust Fluid gauge
• Audible/Visual alarms:
• Warning lights: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Alternator, Low fuel;, Grid heater*, Brake pressure, Engine oil pressure, Steering pressure.
• Caution warnings: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Hydraulic filter, Alternator, Low fuel
• Critical warnings: Engine oil pressure, Brake pressure, Steering pressure – w/ aux. steering*, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature
• Backup alarm
• Maintenance reminders: Cab air filter, Engine oil filter, Fuel pre-filter, DEF tank vent filter
• SCR supply filter, Hydraulic oil and filter, Engine air filter, Engine coolant drive belt, Cab recirculation filter, Engine breather filter, Transmission breather, Front and rear axle fluid, SCR supply module filter
• NOTE: *If equipped w/ option

ENGINE

• Case/FPT F4HFE613W
• Tier 4 Final Certified
• Selectable work modes:
• Maximum Power
• Standard Power
• Economy Power
• Auto Power
• Turbocharger
• Charge air cooling
• Automatic belt tensioner
• Integral engine oil cooling
• Fuel filter with water trap
• Dual-element dry-type air cleaner
• Hydraulic-driven cooling fan
• Air-cooled radiator
• Mid-mounted cooling module
• Common rail electronic fuel injection

LOADER

• Z-Bar loader linkage
• Single control for lift and tilt
• Positive hold float
• Automatic return-to-dig
• Automatic height control
• Automatic return-to-travel
• Brake pedal transmission disconnect
• Bucket position indicator on bucket

DRIVETRAIN

• 4-wheel drive
• 4F/3R Selectable autoshift /manual shift transmission
• Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
• Onboard diagnostics
• Single lever electronic shift control
• F/N/R switch in loader control handle
• Downshift button
• Torque converter
• Limited-slip differentials – Z-Bar
• Outboard planetary axles
• Transmission oil cooler
• Brake pedal transmission disconnect – declutch
• Hydraulic wet disc brakes
• Spring-applied hydraulic release
• Parking brake
• Limp-Home Mode
• Greasable rear axle trunnion
• 3-piece rims

HYDRAULICS

• Electro-hydraulic (EH) joystick loader control
• Low-effort steering
• Hydraulic driven cooling fan
• Diagnostic quick couplers
• Split flange hydraulic connections –
• 1 in or greater
• Hydraulic oil cooler

ELECTRICAL

• Alternator and voltage regulator
• Battery isolator/electrical disconnect
• 120 amp alternator
• (2) 700 CCA 12-volt batteries
• Electric starter
• Lights:
• 2 Front and 2 rear halogen flood lights
• 2 Front driving headlights – high/ low beam with integrated turn signals
• 2 LED stop/ tail lights with integrated turn signals
• Key start /stop switch
• Backup alarm
• Centrally located fuse box with all electrical circuits protected
• Remote jump start posts

OTHER

• Electric hood lift
• Front and rear fenders, partial coverage
• Heavy counterweight
• Drawbar hitch
• Articulation locking bar
• Lift arm locking bar
• Lift and tie-down points – front /rear
• Remote drain points
• Grouped remote-mounted ecology drains:
• Engine oil
• Engine coolant
• Hydraulic oil

TELEMATICS

• CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
