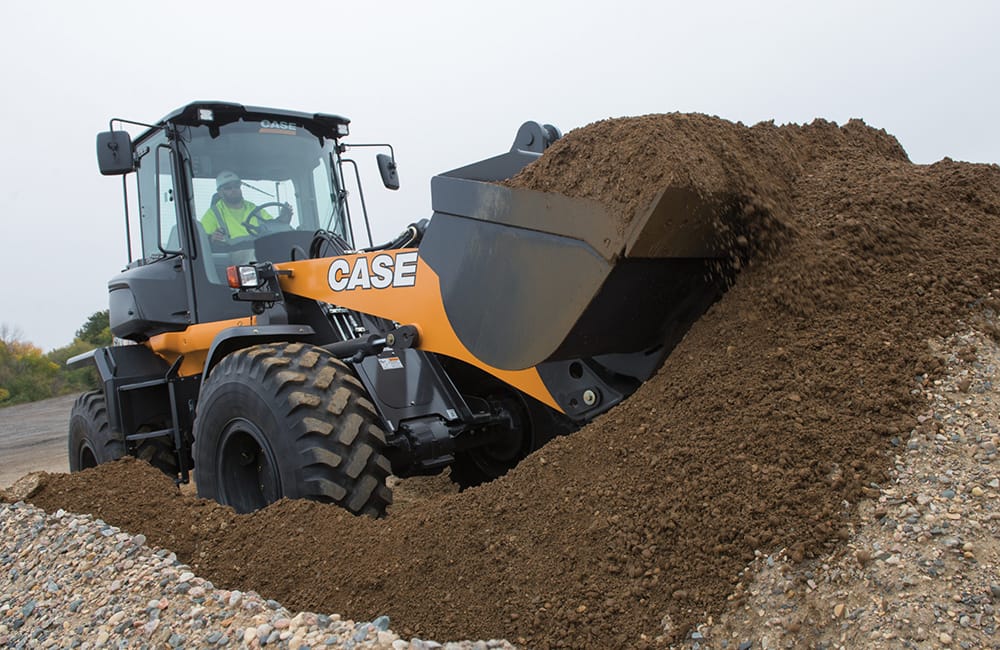

521G

OPERATOR ENVIRONMENT

• ROPS cab AC w/ heat
• Key start
• Articulated power steering w/ tilt column
• Fully adjustable, suspension seat
• Foot throttle
• Single lever loader control w/ fully adjustable wrist rest, 2 cup holders
• 2 interior rear view mirrors
• 2 in (51 mm) retractable seat belt
• Multiple storage trays
• Single brake pedal
• F/N/R shuttle switch
• External rearview mirrors
• Pressurized air filtering
• Anti-glare window strip
• Front and Rear Defroster
• Side window, partial/fully open
• 2 Dome lights
• Wipers, rear and intermittent front
• Windshield washers, front and rear
• Rubber floor mat
• Horn
• Dispays/Gauges: Digital: Transmission oil temperature, Engine coolant temperature, Fuel level, DEF level
• LCD screen: Hour meter, Time, FNR indicator, Trip computer, Differential lock, Engine speed, Automatic transmission indicator, DeClutch indicator, Fuel consumption, Engine diagnostics, Error reporting, Travel speed, Gear selection, Engine mode indicator, Transmission diagnostics, DEF – Diesel Exhaust Fluid gauge
• Audible/Visual alarms:
• Warning lights: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Alternator, Low fuel;, Grid heater*, Brake pressure, Engine oil pressure, Steering pressure.
• Caution warnings: Parking brake, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature, Air filter, Transmission filter, Hydraulic filter, Alternator, Low fuel
• Critical warnings: Engine oil pressure, Brake pressure, Steering pressure – w/ aux. steering*, Coolant temperature, Hydraulic oil temperature, Transmission oil temperature
• Backup alarm
• Maintenance reminders: Cab air filter, Engine oil filter, Fuel pre-filter, DEF tank vent filter
• SCR supply filter, Hydraulic oil and filter, Engine air filter, Engine coolant drive belt, Cab recirculation filter, Engine breather filter, Transmission breather, Front and rear axle fluid, SCR supply module filter
• NOTE: *If equipped w/ option

ENGINE

• Case/FPT F4HFE413NB
• Tier 4 Final Certified
• Selectable work modes:
• Maximum power
• Auto power
• Standard power
• Economy power
• Turbocharger
• Charge air cooling
• Automatic fan belt tensioner
• Integral engine oil cooling
• Fuel filter with water trap
• Dry-type air cleaner
• Hydraulic-driven cooling fan
• Air-cooled radiator
• Mid-mounted cooling module
• Common rail electronic fuel injection

LOADER

• Z-Bar loader linkage
• Single control for lift and tilt
• Positive hold float
• Automatic return-to-dig
• Automatic height control
• Automatic return-to-travel
• Brake pedal transmission disconnect
• Bucket position indicator on bucket

DRIVETRAIN

• 4-wheel drive
• 4F/3R Selectable autoshift/manual shift transmission
• Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
• Onboard diagnostics
• Single lever electronic shift control
• F/N/R switch in loader control handle
• Downshift button
• Torque converter
• Outboard planetary axles
• Limited-slip differentials
• Transmission oil cooler
• Brake pedal transmission disconnect
• Hydraulic wet disc brakes
• Spring-applied hydraulic release parking brake
• Limp-Home Mode

HYDRAULICS

• Electro-hydraulic (EH) joystick loader control
• Low-effort steering
• Hydraulic driven fan
• 8 Diagnostic quick couplers
• Split flange hydraulic connections –
• 1 in or greater
• Hydraulic oil cooler

ELECTRICAL

• 70 amp alternator and voltage regulator
• Battery isolator/electrical disconnect
• (2) 700 CCA 12-volt batteries
• Lights:
• 2 Front driving headlights – high/low beam
• 2 Front flood
• 2 LED stop and tail lights
• 2 Rear flood
• Front and rear turn signal/flash
• Centrally located fuse box with all electrical circuits protected
• Backup alarm
• Remote jump posts

OTHER

• Front and rear fenders, partial coverage
• Heavy counterweight
• Drawbar hitch
• Articulation locking bar
• Lift arm locking bar
• Lift and tie-down points – front/rear
• Remote drain points

TELEMATICS

• CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
