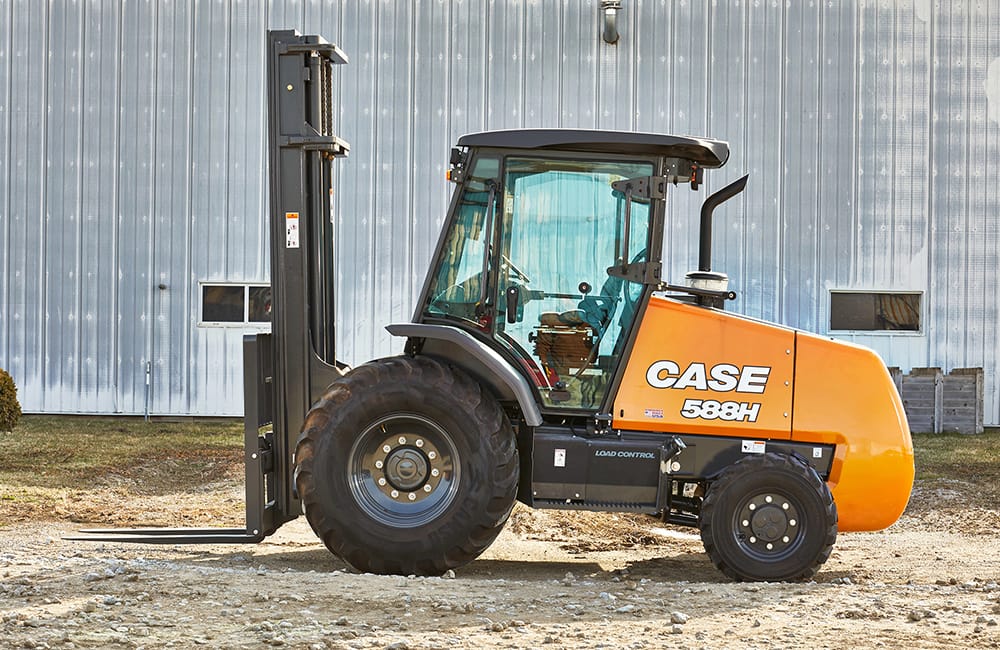

588H

ENGINE

• FPT 3.4 L Diesel
• Cooled EGR
• Diesel Oxidation Catalyst
• Full flow engine oil filter
• Air cleaner: Replaceable dry type with radial seal
• Particulate filter
• Radiator with de-aeration bottle
• Antifreeze to -34°F (-37°C)
• Foot throttle
• Self adjusting belt

MAST

• 15 ft Std. Mast 2,468 lb (1 120 kg)
• 22 ft Std. Mast 3,183 lb (1 444 kg

HYDRAULICS

• Gear pump – 24 gal/min @ 3,000 psi (91 L/min @ 207 bar)
• Heavy-duty hydraulic oil cooler
• 7 micron, spin-on oil filter

OPERATOR ENVIRONMENT

• ROPS/FOPS certified protective canopy
• 2 halogen headlights
• 2 rear halogen work lights
• Wide walk through platform
• Vinyl seat
• 2 in (51 mm) seat belt
• Molded front fenders
• Gauges: Hour meter, Engine RPM, Engine coolant temperature, Transmission oil temperature, Job timer, Fuel level
• Warning lights: Air cleaner restriction, Alternator, Cold start, Engine oil pressure, Hydraulic oil filter bypass, Parking brake engagement, Engine coolant temp, Battery voltage
• Audible alarms: Coolant temperature, Engine oil pressure, Parking brake engagement, Converter oil temperature, Backup, Horn

DRIVETRAIN

• Front axle, as selected:
• 2/4WD heavy-duty outboard planetary drive, with 19.5 L x 24 tires
• Rear axle: 2WD heavy-duty front axle with 12 L x 16.5 tires 4WD heavy-duty mechanically driven rear axle, with 12 L x 16.5 tires
• 4F-4R Power Shuttle Synchromesh Transmission
• Torque converter
• On-the-Go electric 4WD control
• Electric F/R shuttle control
• Electric differential lock control, with push-button activation
• Park brake, spring applied, hydraulic release

OTHER

• Swing out side panel engine access
• Front/rear tie downs
• Reflective logos
• Canopy only: 2 front driving lights, 2 rear halogen work lights
