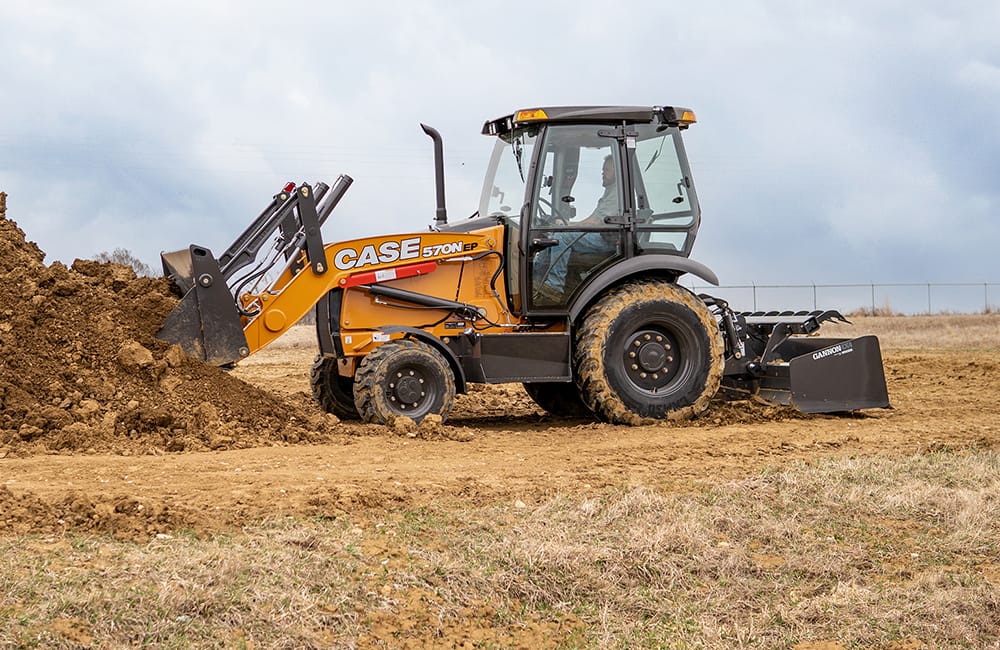

570N EP

ENGINE

• FPT 3.4 L diesel
• Cooled EGR
• Diesel Oxidation Catalyst
• Full flow engine oil filter
• Air cleaner – replaceable dry type with radial seal
• Radiator with de-aeration bottle
• Antifreeze to -34° F (-37° C)
• Foot throttle
• Self adjusting belt
• Fuel filter with water trap

POWERTRAIN

• Front axle, as selected: 2WD heavy-duty front axle with 11.0 L x 16.0 tires, 4WD heavy-duty mechanically driven rear axle, with 12.0 L x 16.5 tires
• Rear axle: 2/4WD heavy-duty outboard planetary drive with 17.5 L x 24.0 tires, 4F-4R Power Shuttle Synchromesh transmission
• Torque converter
• On-the-go electric 4WD control
• Electric F/R shuttle control
• Electric differential lock control, with push-button activation – Located on the loader control lever and side console
• Park brake, spring-applied, hydraulic release

OPERATOR ENVIRONMENT

• ROPS/FOPS certified protective canopy
• 2 halogen headlights
• 2 rear flood lights
• 2 rear tail and stop lights
• 2 front flashers/turn lights
• 2 rear flashers/turn lights
• Anti-vandalism cover for dash and front console – w/ canopy only
• Pre-wired for radio – cab only
• Rear fenders w/ storage tray and molded beverage and thermos holder
• Coat hook w/ garment strap
• Interior rearview mirror
• Non-suspension seat – 15 degree and 30 degree swivel to the right
• 2 in (51 mm) retractable seat belt
• Cup holder/storage tray mounted on LH fender
• Gauges: Engine water temperature, Converter oil temperature, Fuel level, Tachometer/hourmeter, Voltmeter
• Warning lights: Air cleaner restriction, Alternator, A/C high pressure, Cold start,Engine oil pressure low, Hydraulic oil filter bypass, Parking brake engagement, Low fuel, Water in fuel
• Audible alarms: Coolant temperature, Engine oil pressure, Parking brake engagement, Shuttle engagement/seat position, Backup, Horn

HYDRAULICS

• Gear pump: 28.5 gal/min @ 3,000 psi (108 L/min @ 207 bar)
• Heavy-duty hydraulic oil cooler
• 7 micron, spin on oil filter

LOADER

• Bucket position indicator
• Lifting lugs on standard bucket
• Single lever control, with Self-Leveling and Return-to-Dig
• Hand-operated clutch disconnects on loader and shift levers
• Single lever 5-function loader control: Lift, Dump, Auxiliary function, Clutch cut-out, Differential-lock
